Five Layers Sintered Filter Disc , Wire Mesh Stainless Steel Round Discs

Name: Five Layers Sintered Filter Disc Wire Mesh Stainless Steel Round Discs
Brand: JUMAO
Price: 1 USD

China Five Layers Sintered Filter Disc , Wire Mesh Stainless Steel Round Discs wholesale

Brand Name : JUMAO

Model Number : JM-SFD9640

Certification : ISO

Place of Origin : CHINA

MOQ : 1 PCS-1000 PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500-10000 pcs as different size

Delivery Time : 8-40days

Packaging Details : Wooden Boxes

Material : Stainless Steel

Brand : JUMAO

Thickness : 0.1MM-10MM

Working Temperature : -40 - 600°C

Shape : Filter Disc

Application : Air/Gas/Liquid filtration

Contact Now

Standard Five Layers Wire Mesh Sintered Filter Disc - Material Stainless Steel

The standard size of five-layer sintered mesh for sintered filter disc is 500*1000mm.We can cut any size in this range according to demand.

Please tell us your detailed requirements, we will provide you with the most intimate products and services.Most of our products are non-standard customized, there is out of stock.Once sold no quality problems do not support replacement
The height, diameter, filtration precision, silk diameter and material of different products are all customized. Please consult the customer service for the specific price

Feature of sintered filter discs:

Different shape and size.

Smooth surface structure.
High durable and strength.
High permeability.
High dirt-holding capacity.
High temperature resistance.
Adjustable filtration and high flow rates.
Good air permeability.
Repeatedly and easy cleaning

Data Of Sintered Wire Mesh For Sintered Filter Disc

type	accuracy (um)	thickness (mm)	Gas permeability (L/mil·dm2·1000pa)	Bubble pressure (pa)
WB-316L(304)/1-1	1	1	180	5300-6000
WB-316L(304)/1-2	2	1	240	4300-5000
WB-316L(304)/1-3	3	1	260	3000-3700
WB-316L(304)/1-10	10	1	310	2700-3300
WB-316L(304)/1-15	15	1	350	2000-2600
WB-316L(304)/1-20	20	1	450	1800-2300
WB-316L(304)/1-25	25	1	620	1400-1900
WB-316L(304)/1-30	30	1	690	1200-1700
WB-316L(304)/1-40	40	1	720	1000-1500
WB-316L(304)/1-50	50	1	850	900-1200
WB-316L(304)/1-70	70	1	900	700-1100
WB-316L(304)/1-100	100	1	1080	650-1000
WB-316L(304)/1-150	150	1	2600	500-800
WB-316L(304)/1-200	200	1	2800	450-600

Applications Of Sintered Filter Disc

Five Layers Sintered Filter Disc , Wire Mesh Stainless Steel Round Discs

Liquid and gas filtration
Nutsche filters
Fluidized beds
Chromatography frits
Centrifuges
Hydraulic filters
Sand control screens in oil wells
Polymer filtration
and more…

Product Tags:

sintered metal filter disc

wire mesh filter disc

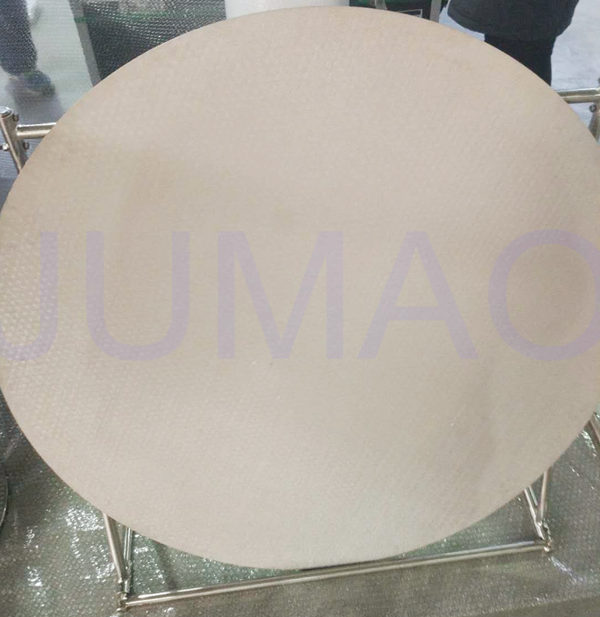

Five Layers Sintered Filter Disc , Wire Mesh Stainless Steel Round Discs Images
